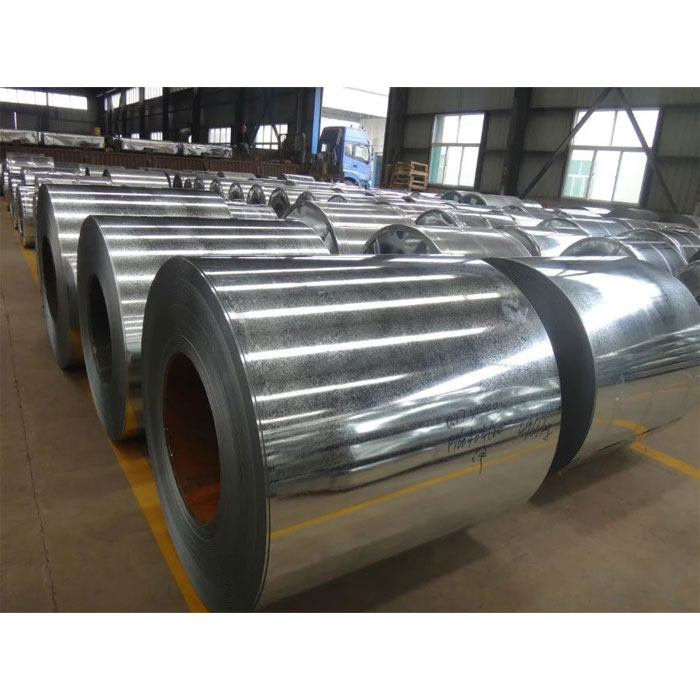

Hot Dipped Galvanized Steel Coil

The main characteristics of hot dipped galvanized steel coil have good processing performance, strong corrosion resistance, high heat resistance, perfect mechanical properties and pretty surface quality, which are beneficial to further processing, economical and practical in infrastructure and construction.

Softy, Semi-Hard, Full Hard;

Zero Spangle, Small Spangle, Regular Spangle, Big Spangle;

Products Categories
Get A Free Quote
Contact Form Demo (#3)

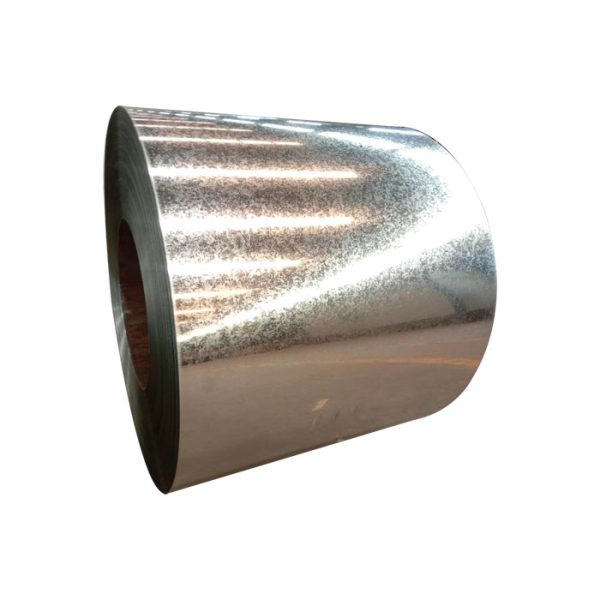

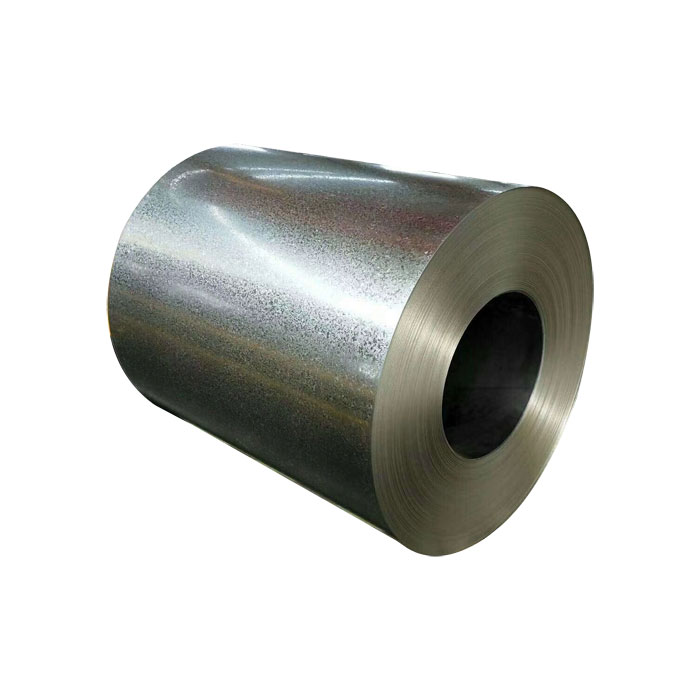

galvanized steel coil Description

Hot dipped galvanized steel coil are processed by continuous hot-dip galvanizing from cold-rolled steel coil. Zinc coating on both sides can effectively prevent corrosion and rust, and increase the service life of steel plate.

Galvanized Steel Coil Specification & Features



Hot Dipped Galvanized Steel Coil
Standard JIS G3302, EN10147, ASTM A653M
Grade SGCC, SGCH
DX51D, DX52D, DX53D, DX54D
S280GD, S320GD, S350GD, S400GD, S500GD, S550GD
Zinc Coating Z30-400G/M2, G30, G60,G90, Z10, Z12,Z27
Spangle Model Zero Spangle, Small Spangle, Regular Spangle, Big Spangle
Surface Treatment Chromated, Oiled, No-oiled
Hardness Softy, Semi Hard, Full Hard, G550
Thickness 0.11-4.00MM
Width 20-1500MM
Coil Weight 3-5MT/Coil or Customized
Coil Inner Diameter 508MM or 610MM
Package Standard Seaworthy Exporting Packing
MOQ 25MT
Capacity 7000MT/Month
Transport Type Vessel Container, Vessel Bulk, Railway Container, Railway Wagon
Loading Port Tianjin, Qingdao, Ningbo, Shanghai and other China’s port
Delivery Time 15-25 Days after Receiving the Deposit
Terms of Trade EXW, FOB, CFR, CIF
Terms of Payment T/T and Irrevocable LC at Sight



The advantages of galvanized steel coil are mainly manifested in the following aspects:

1.Processing performance
Hot dipped galvanized steel coil can fully meet the requirements of rolling, stamping, printing, marking, bending and other forms of processing.

2.Corrosion resistance
Hot dipped galvanized steel coil has excellent corrosion resistance, and the service life is 3 times than that of hot rolled and cold rolled steel under the test of the same thickness and surface treatment.

3.Heat resistance
Hot dipped galvanized steel coil can be used for a long time in an environment of 315 degrees without changing color while other steel sheets are just used at a temperature of only 230 degrees, and 250 degrees will change color.

4.Mechanical properties
The mechanical properties of galvanized steel sheets are significantly higher than those of hot rolled and cold rolled steel sheets, which are mainly manifested in yield strength, tensile strength, and elongation. The yield strength of galvanized steel sheet is between 300 and 400mpa, the tensile strength is between 300 and 550mpa, and the elongation is between 28% and 40%.

Galvanized Steel Coil Application

Hot dipped galvanized steel coil has excellent performance and good comprehensive properties such as corrosion resistance, easy forming and painting. Hot dipped galvanized steel coil are mainly used in build construction, home appliances, containers, transportation, automobiles and metallurgical industries.
Construction industry: roofs, doors and windows, rolling shutter doors, ceiling keels, etc.;
Home appliances: refrigerators, washing machines, air conditioners, range hoods, etc.;
Automotive industry: body shells, chassis, doors, fuel tanks, fenders, etc.;
Metallurgical industry: steel window blanks, color-coated board substrates, etc.

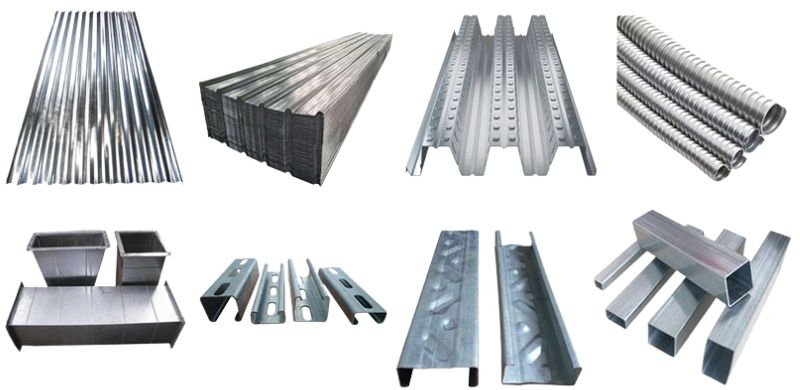

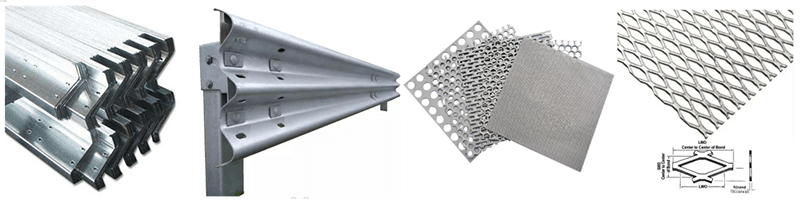

For example, Corrugated Roofing Sheet, Steel Floor Deck Sheet, Ventilation Ducts, U/C Channel, Round/Rectangular/Square pipe, Protection Fence of Highways, Metal Expanded Mesh and so on.

galvanized steel coil applications

Quality Control and Self-inspection

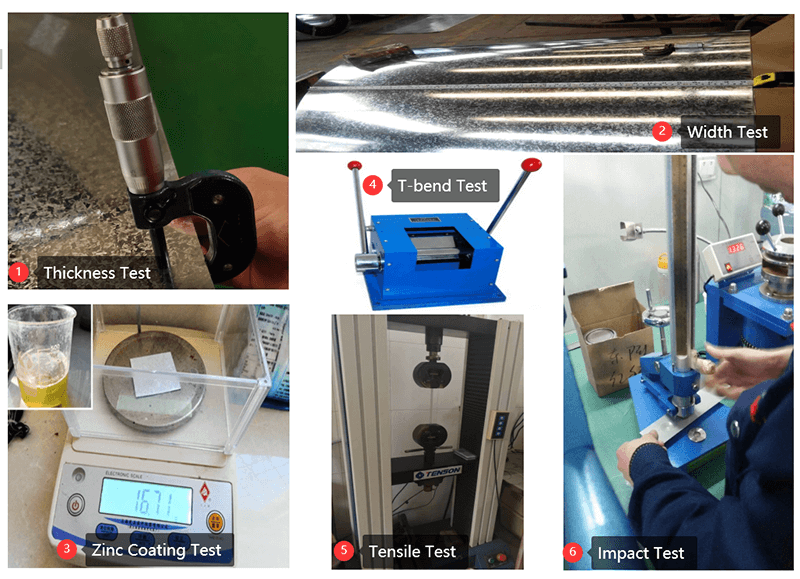

WITOP steel have the advanced testing equipment and professional team. WITOP steel strictly control the quality on each step of production, including inspection on raw materials, product’s thickness and width test, zinc coating test, T-bend test, impact test, tensile test, salt-spray test and package testing on exporting steel coil, which ensures its integrated performance and quality.

Prime Hot Dipped Galvanized Steel Coil (1)

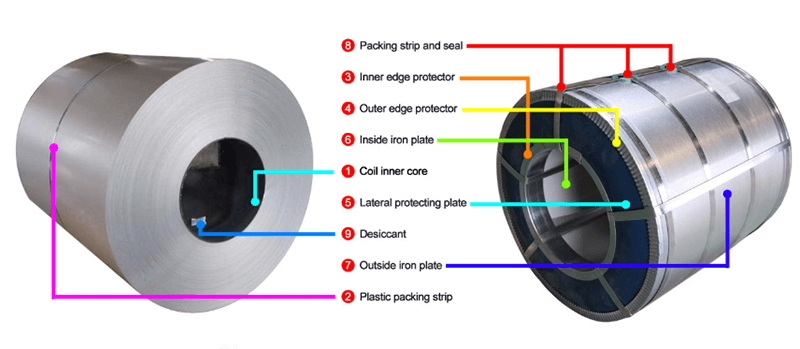

Product Package

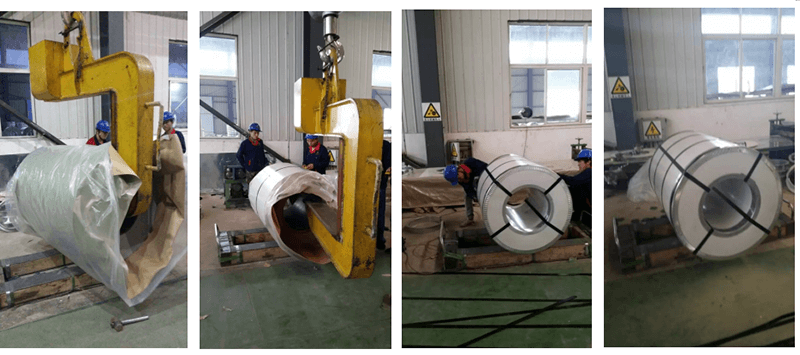

Standard export package: 3 layers of packing, inner side is anti-water craft paper, PVC plastic film is the middle and outer side covered by at least 0.45mm thick steel sheet,wrapped by minimum seven steel strapping strips with lock catch.

In particular, WITOP steel places desiccant on the coil inner core side and on both lateral sides of the coil for bulk transportation to ensure that coils are delivered to clients in good condition.

Package can be customized as client’s requirements.

Prime Hot Dipped Galvanized Steel Coil (4) Prime Hot Dipped Galvanized Steel Coil (5)

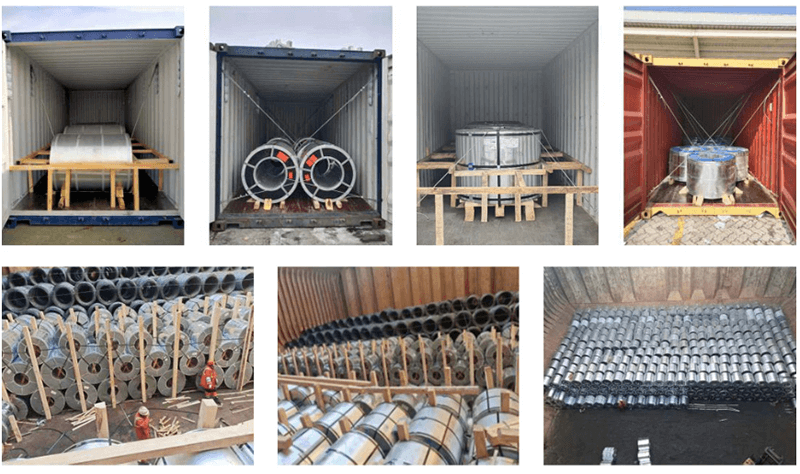

Loading and Fastening Steel Coil

WITOP steel have our own loading and fastening workers and team, which can fasten steel coils well in container and bulk based on ship line company. WITOP steel can guarantee galvanized steel coil well to every client.

Prime Hot Dipped Galvanized Steel Coil (6)

Main Market and Customer’s Feedback

WITOP steel have exported galvanized steel coil to Ethiopia, Somalia, Kenya, Tanzania, South Africa, Nigeria, Guinea, Ghana, Saudi Arabia, UAE, Kuwait, Iraq, Yemen, Singapore, Indonesia, Philippines, Thailand, Chile, Peru, Argentina, Bolivia and other countries for twenty years. Hot dipped galvanized steel coil have gained good reputation and wide appreciation throughout Africa, Middle East, Middle Asia, Southeast Asia and South America.

Get Free Samples of Galvanized steel Coil

The free sample test quality is acceptable before the order, If you need samples just contact me us for collection.
